Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging

Informasi Dasar

Tempat asal:	Guangdong, Cina
Nama merek:	UNIMETRO
Nomor model:	Ranger 600

Kuantitas min Order:	1
Harga:	$15,600-22,000

Harga terbaik Hubungi sekarang

Informasi Detail

X Axis Travel:	80mm	Y travel poros y:	60mm
Rentang Z Axis:	60mm	Diameter alat maks:	50mm
Panjang alat maks:	300mm	Jarak kerja:	90mm
Pembesaran Lensa:	0.7-4.5x	Resolusi kamera:	2M Pixel HD (5M Opsional)
Resolusi skala linier:	0,0001mm	Rentang perbesaran:	12.6x ~ 79.2x (25.2x ~ 158.4x Opsional)
Bidang pandang:	2720mm ~ 4.33.3mm (13.510mm ~ 2.31.6mm opsional)	Akurasi pengukuran:	X ~ y, (2.5+l/100) µm
Sistem PC:	PC all-in-one, Windows 10 OS, 24 "LCD	Jenis Penerangan:	Lampu cincin LED 8-bagian, lampu kontur, lampu tambahan
Format input/output:	DXF, Excel
Menyoroti:	Electronic Power Tool Inspection System , SMARTOOL Measuring Software Vision Measurement Machine , Wooden Case Packaging Video Measuring System

Deskripsi Produk

Milling Tool Inspection System Tool Video Measuring System Vision Measurement Machine

Product Application

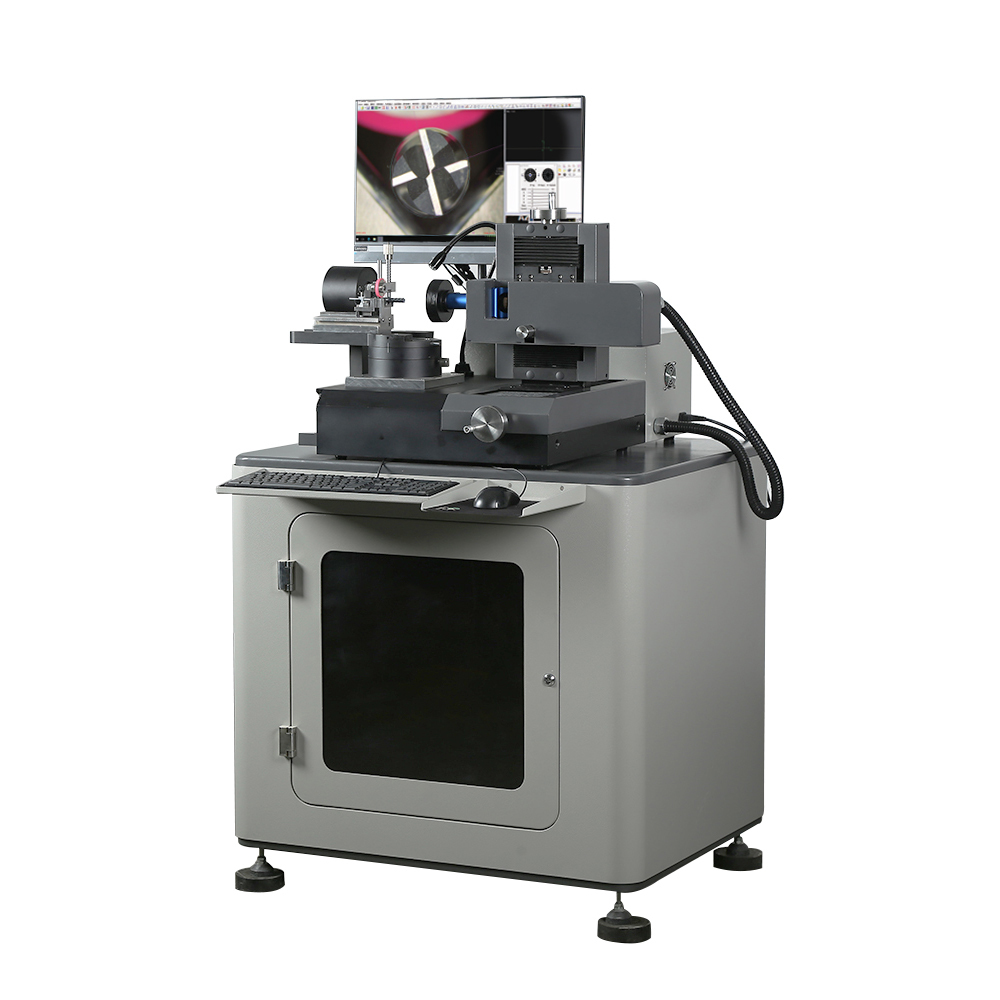

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and countersinks with a flexible illuminating system. Thanks to the compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.

The RANGER600 Tool Inspection system is configured with SMARTOOL universal measuring software, making it the ideal instrument for all types of metal cutting tools - from fast checking of single criteria (such as outer contour or angles) to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.

Technical Parameters

X axis travel	80mm
Y axis Travel	60mm
Z axis measuring range	60mm
Max tool Diameter	50mm
Max tool length	300mm
Working distance	90mm
Lens	0.7-4.5X dented zoom lens
Camera	2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution	0.0001mm
Magnification	12.6X~79.2X/25.2X~158.4X (Optional)
Field of view	2720mm~4.33.3mm/13.510mm~2.31.6mm (Optional)
Measuring accuracy	X~Y,(2.5+L/100)µm, L is the measured length
PC	ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor

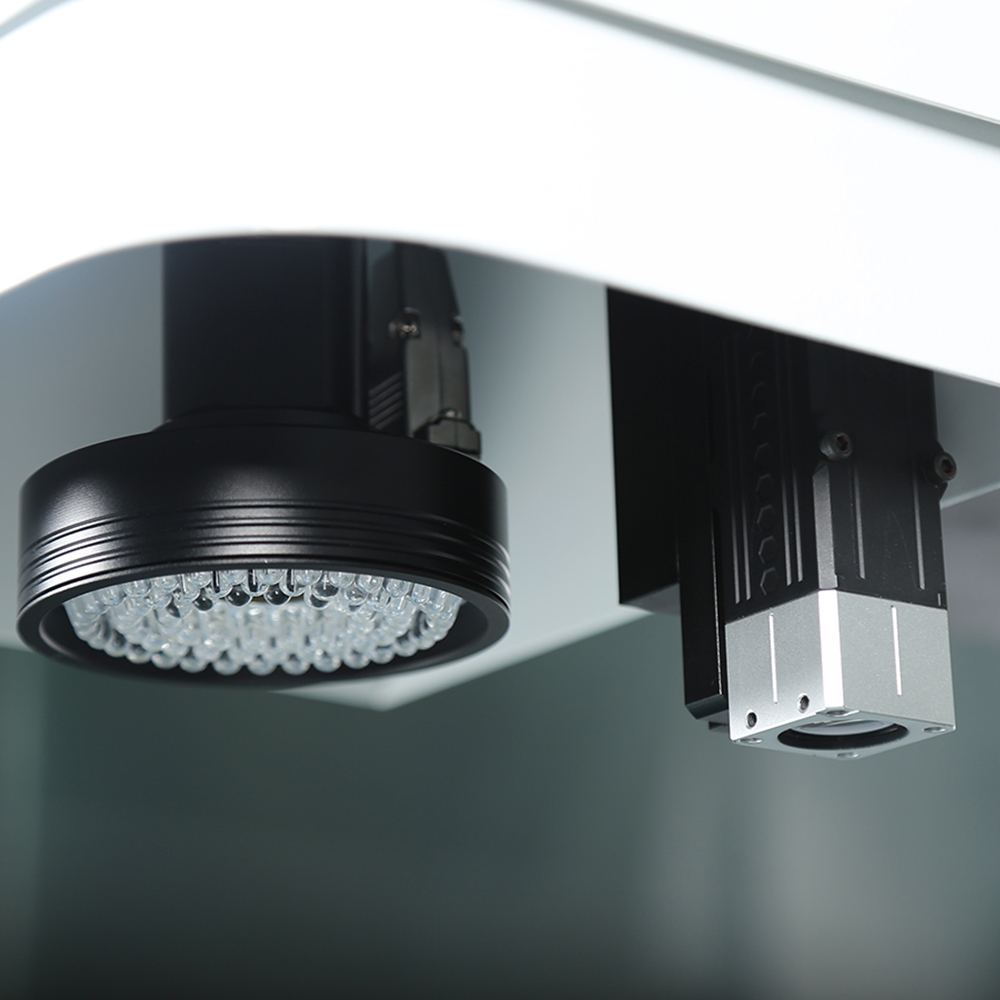

Illumination	8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable
Input format	DXF files
Output format	EXCEL, DXF

Advanced Design Features

Ergonomic design and solid construction
HD image capturing and display combination, with optional microscope magnification levels

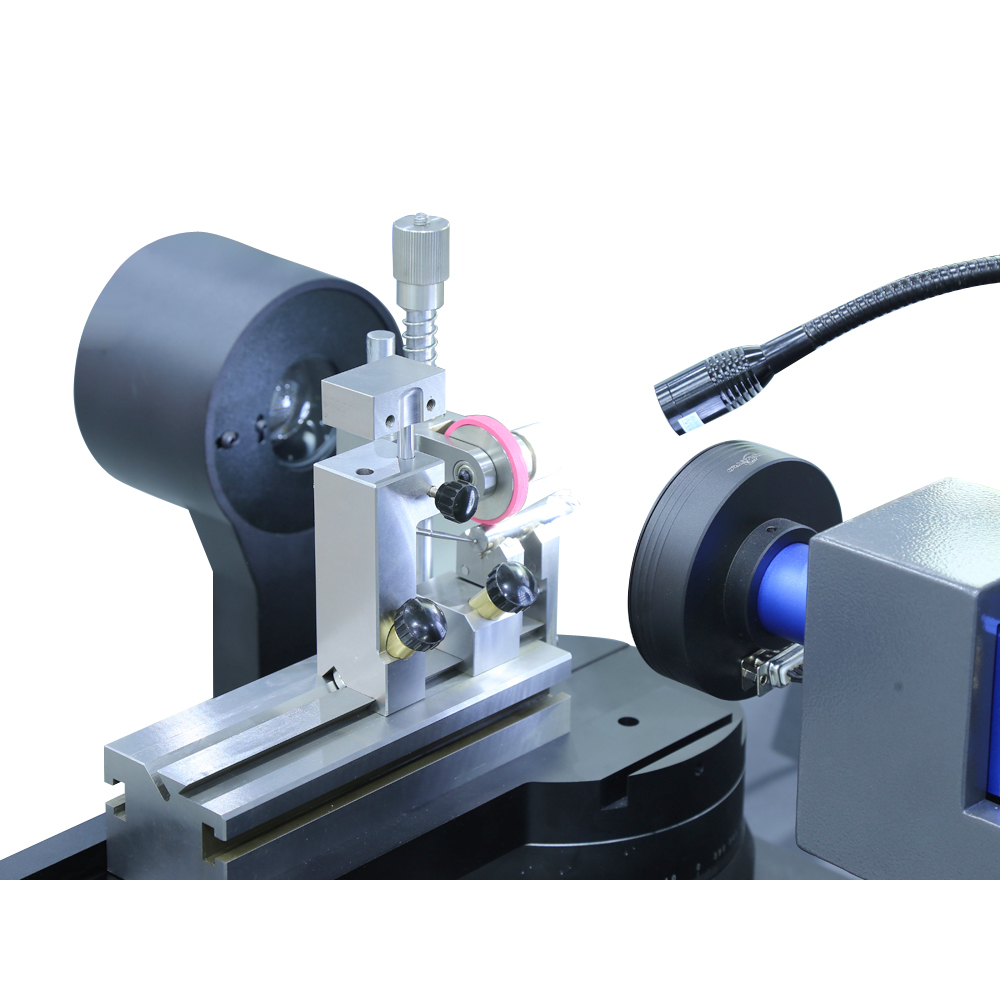

Stable and accurate V block for easy tools holding and alignment
Mechanical fixed measuring angles of 0 degree and 90 degrees available on the rotary stage
High accuracy encoder embedded in the rotary table for precise angle location
Multiple section programmable LED ring light for surface illumination, including contour lighting and free angle auxiliary light
SMARTOOL measuring software with specific functions for cutting tools
Automatic edge detection, fast angle measurement with reticle, and CAD element comparison functions
Measuring results can be quickly output to EXCEL file reports or CAD files
ALL-IN-ONE PC system for enhanced stability

Multiple Angle Measurement Capabilities

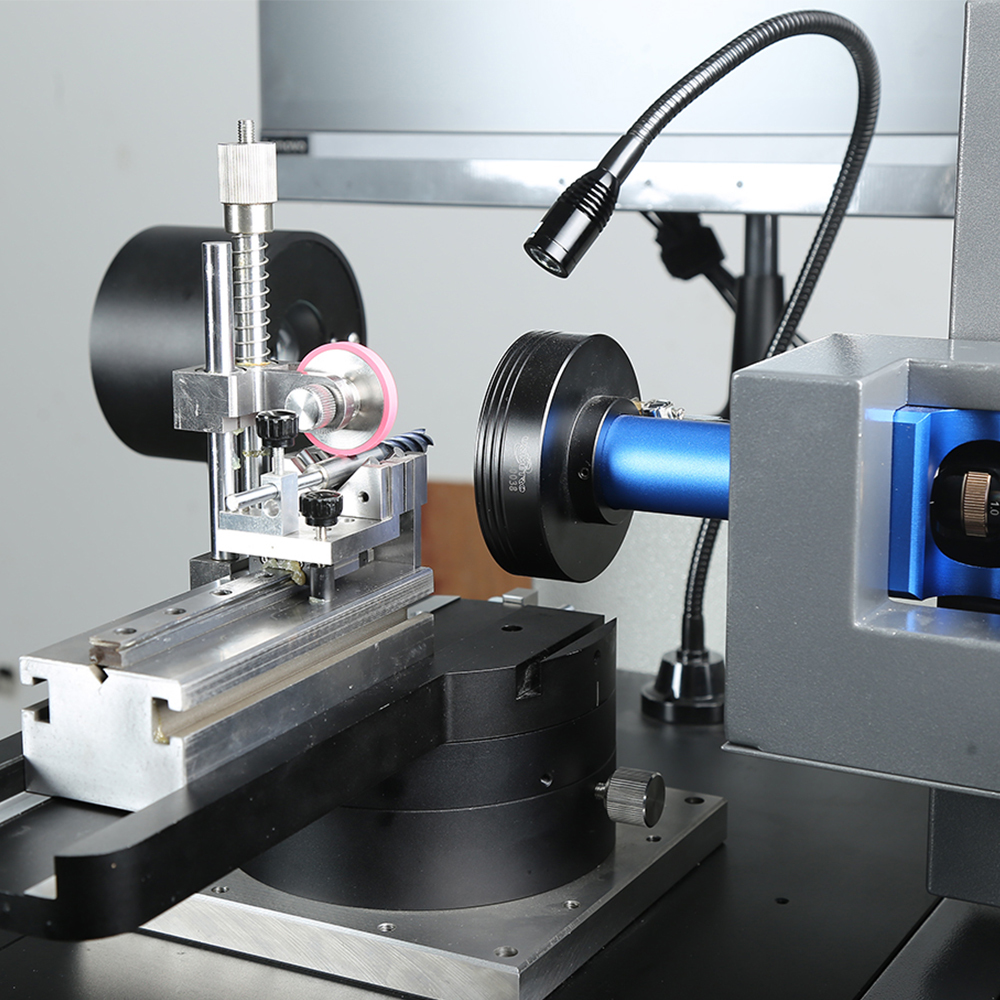

The rotary table of the RANGER600 offers two mechanical fixed angles (0° and 90°) for fast and precise tool angle location during measurement. At 0°, users can measure Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position is designed for Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle measurements. For other angle requirements, the embedded encoder provides precise angle readings displayed in the software.

0 Degree Measurement

45 Degrees Measurement

90 Degrees Measurement

Illumination System Features

Free Angle Auxiliary Light

A dimmable additional light on a flexible arm provides localized image enhancement for detailed measurements.

Contour Light Module

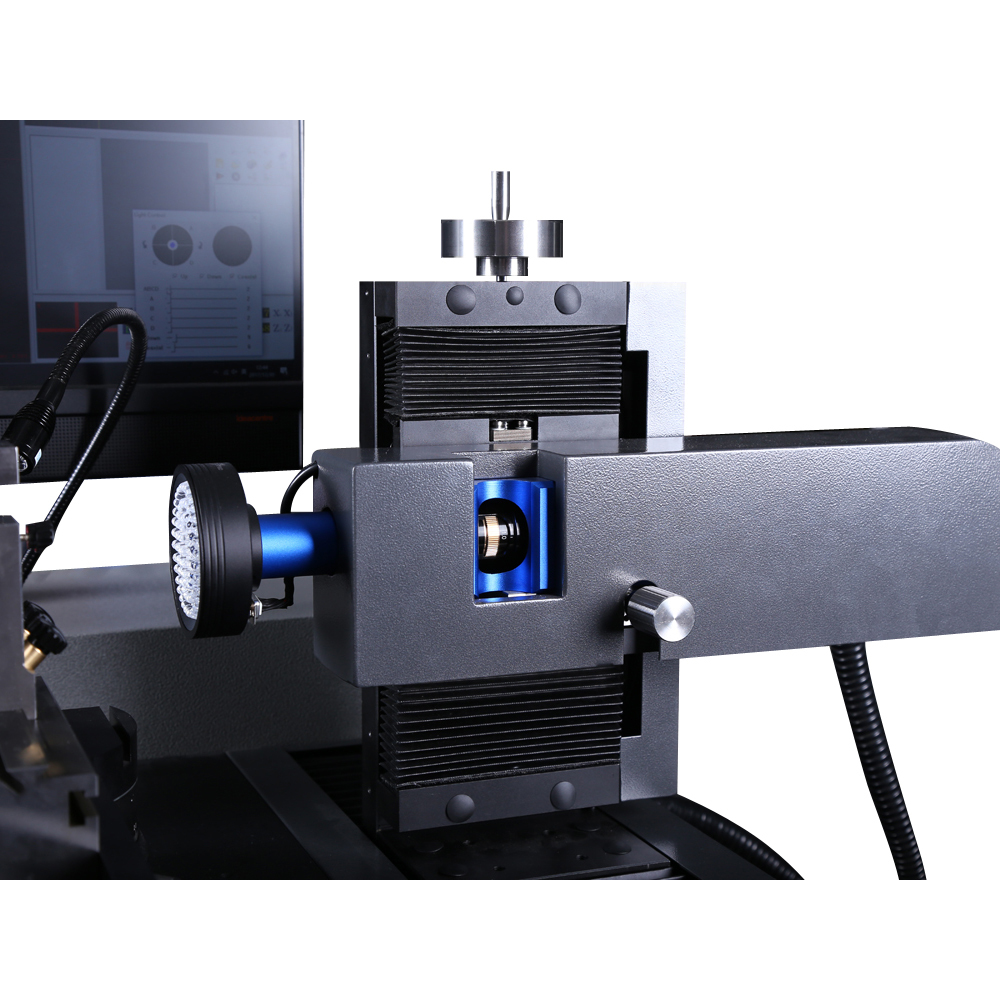

The RANGER600 includes a parallel light path contour LED module that moves along the X-axis, providing optimal imaging and sharp edge definition when measuring tool contours.

Base Table

The solid standing workstation features practical, open-view storage space for materials and tools.

Tools Holder

A multi-section tools holder is embedded at the machine side for organized tool preparation and storage.

SMARTOOL Software Features

The SMARTOOL Cutting Tools Measuring Software is developed based on high-accuracy optical and digital measuring technology. This intuitive software offers numerous measuring and evaluation algorithms specifically designed for tools manufactured or sharpened in grinding operations.

Key Software Features

Easy Operation

High-resolution image display with graphical interface. All function keys and control panels are displayed on the software window for intuitive operation.

Dynamic Real-Time Curve View

The software provides real-time edge detection curve visualization, making edge analysis and measurement more intuitive. Users can switch to curve view mode at any time during measurement.
