Tool Inspection System with 1 Year Warranty Customized Support and Wooden Case Packaging Vision Measurement Machine

Informasi Dasar

Tempat asal:	Guangdong, Cina
Nama merek:	UNIMETRO
Nomor model:	Ranger 600

Kuantitas min Order:	1
Harga:	$22,000

Harga terbaik Hubungi sekarang

Informasi Detail

X Axis Travel:	80mm	Y travel poros y:	60mm
Rentang Z Axis:	60mm	Diameter alat maks:	50mm
Panjang alat maks:	300mm	Jarak kerja:	90mm
Jenis lensa:	Lensa zoom penyok 0,7-4,5X	Resolusi kamera:	Kamera HD Pixel 2M/Kamera HD Pixel 5M (Opsional)
Resolusi skala linier:	0,0001mm	Rentang perbesaran:	12.6x ~ 79.2x/25.2x ~ 158.4x (opsional)
Bidang pandang:	2720mm ~ 4.33.3mm/13.510mm ~ 2.31.6mm (opsional)	Akurasi pengukuran:	X ~ y, (2.5+l/100) µm, l adalah panjang yang diukur
Sistem PC:	Sistem PC all-in-one, Windows 10 OS, Monitor LCD 24 "	Sistem Penerangan:	8 bagian Cincin Lampu LED, CONNOR Light, Fleksibel Auxiliary Light
Sudut tahap putar:	0 derajat dan 90 derajat
Menyoroti:	1 Year Warranty Tool Inspection System , Customized Support Vision Measurement Machine , Wooden Case Packaging VMM Machine

Deskripsi Produk

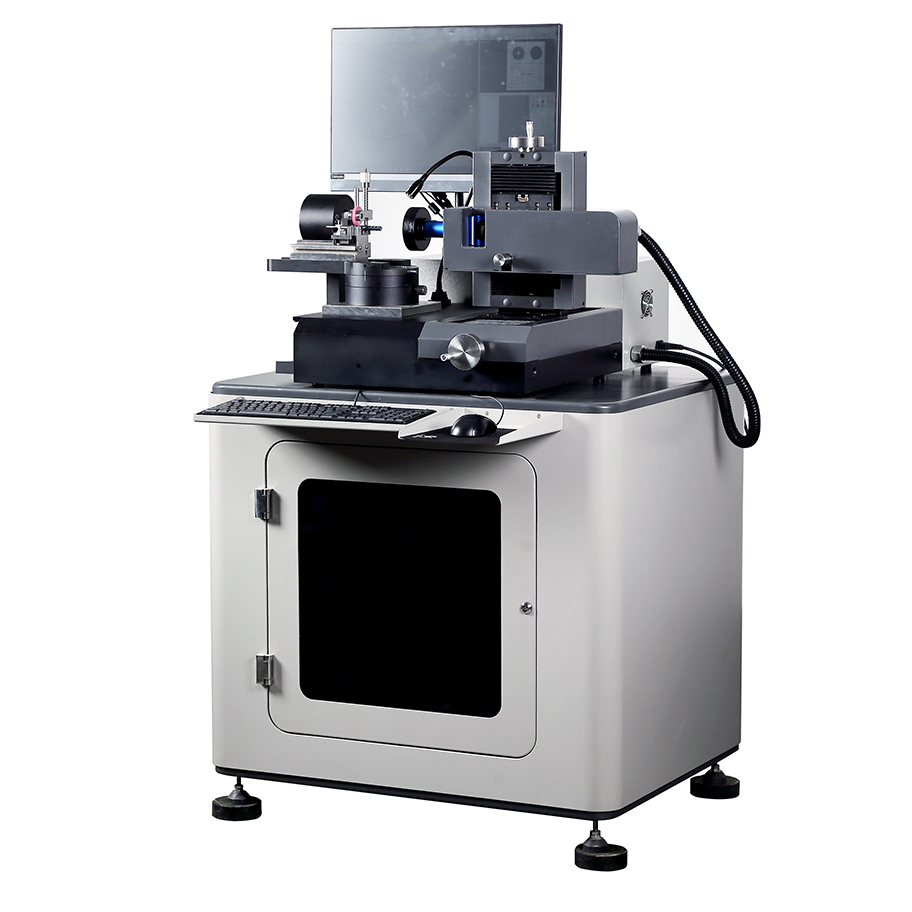

Milling Tool Inspection System - UNIMETRO RANGER600

Product Application

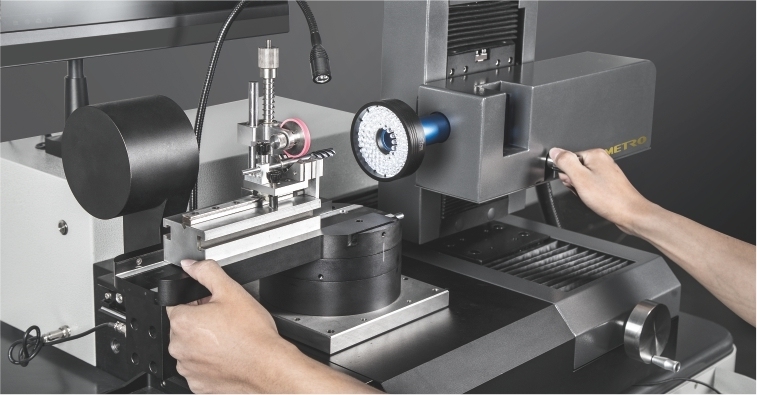

The UNIMETRO RANGER600 Tool Inspection System is a universal measuring machine for drills, milling cutters, and countersinks featuring a flexible illuminating system. Its compact design and stability make it suitable for metrology rooms, receiving inspection, or direct production line use.

Configured with SMARTOOL universal measuring software, the RANGER600 provides comprehensive control of special tool geometries, from simple outer contour checks to complete angle measurements. The system enables a streamlined PUT-MEASURE-ANALYSE process.

Advanced Design Features

Ergonomic design with solid construction for industrial environments
HD image capturing with optional microscope magnification levels

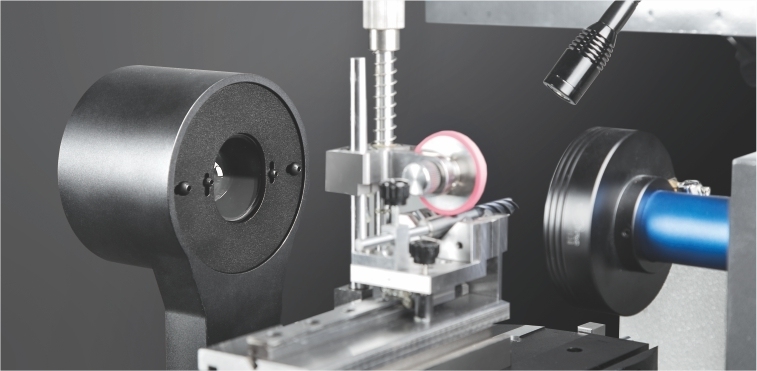

Stable V-block for secure tool holding and alignment
Mechanical fixed measuring angles at 0° and 90° on rotary stage
High-accuracy embedded encoder for precise angle location
Programmable LED ring light with contour and auxiliary lighting
SMARTOOL software with specialized cutting tool measurement functions
Automatic edge detection and CAD comparison capabilities
Results export to Excel or CAD formats
All-in-one PC system for enhanced stability

Precision Angle Measurement

The RANGER600's rotary table provides two mechanical fixed angles (0° and 90°) for fast, precise tool positioning. The 0° position enables measurement of tool ends, center shafts, and front angles, while the 90° position facilitates helix angles, axial front angles, and rear angle measurements. Additional angles are available via the embedded encoder with real-time software display.

0° Measurement Position

45° Measurement Position

90° Measurement Position

SMARTOOL Measuring Software Features

Intuitive Operation

High-resolution image display with graphical interface and on-screen function keys for streamlined operation.

Dynamic Real-Time Curve View

Real-time edge detection curve visualization for intuitive analysis during measurement processes.

Fast Angle Measurement

Rotatable reticle with angle display enables quick edge comparison measurements.

CAD Comparison

Import CAD drawings as reference to compare against actual tool geometries for quality evaluation.

Measuring Capabilities

Helix Angle Measurement

Axial Front Angle Measurement

Rear Angle Measurements

Tool End Measurements

Technical Specifications

Parameter	Specification
X axis travel	80mm
Y axis Travel	60mm
Z axis measuring range	60mm
Max tool Diameter	50mm
Max tool length	300mm
Working distance	90mm
Lens	0.7-4.5X dented zoom lens
Camera	2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution	0.0001mm
Magnification	12.6X~79.2X/25.2X~158.4X (Optional)
Field of view	2720mm~4.33.3mm/13.510mm~2.31.6mm (Optional)
Measuring accuracy	X~Y,(2.5+L/100)µm, L is the measured length
PC	ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination	8 sections LED ring light, contour light and flexible auxiliary light
Input format	DXF files
Output format	EXCEL, DXF

Additional Features

Free Angle Auxiliary Light

Dimmable additional light on flexible arm provides localized image enhancement for precise measurements.

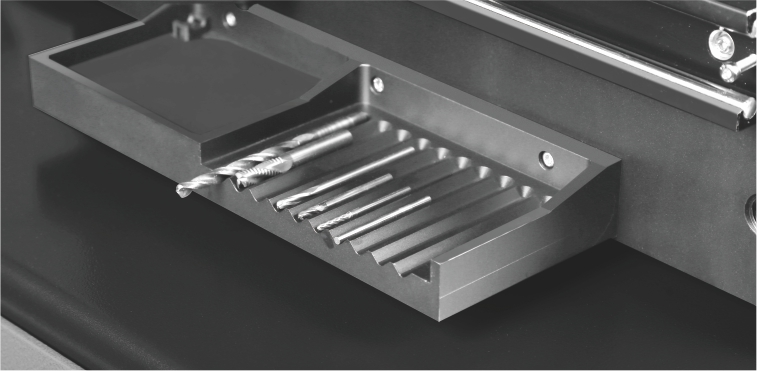

Integrated Tool Holder

Multiple-section tool holder keeps instruments organized and ready for measurement.

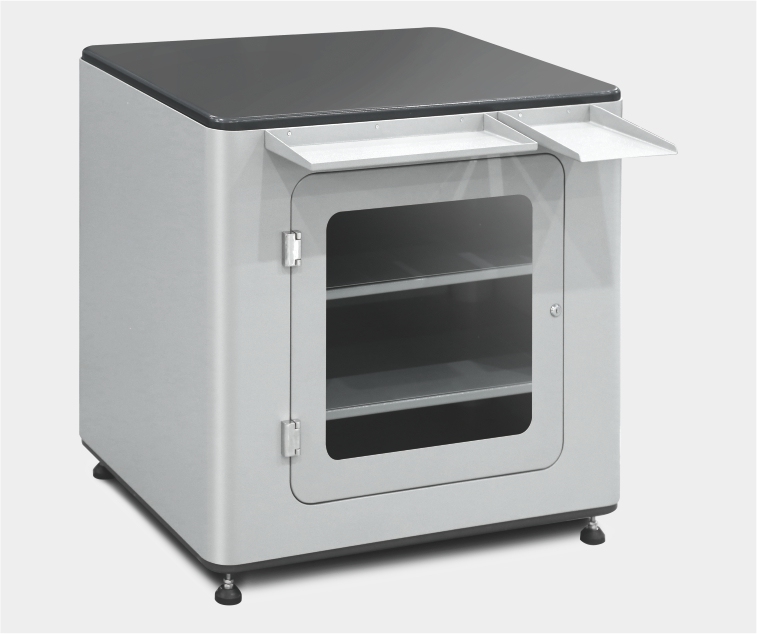

Sturdy Base Table

Solid workstation with practical storage space for materials and accessories.

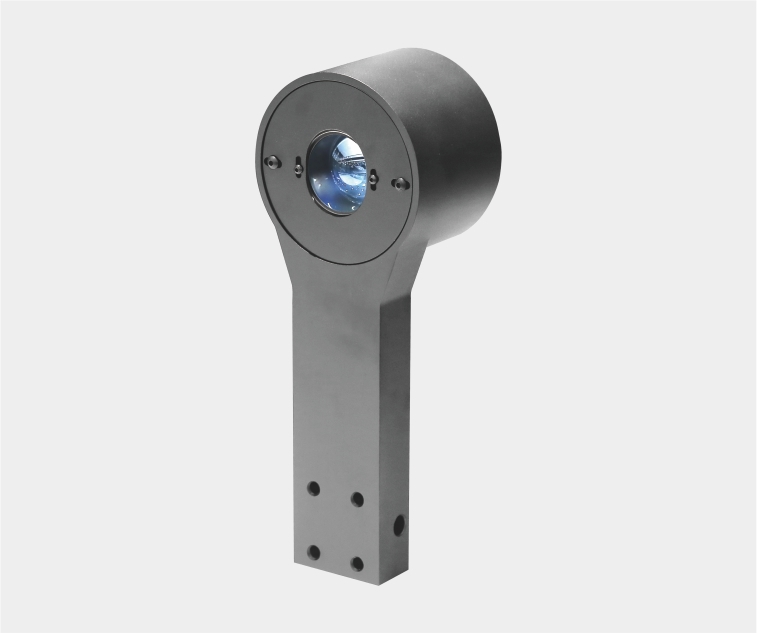

Contour Light Module

Parallel light path contour LED module provides optimal edge visualization when measuring tool contours.

About UNIMETRO

With over 10 years of experience in metrology, UNIMETRO manufactures high-performance measurement products at competitive prices. We welcome global partners and provide comprehensive marketing and technical support.

Our Production Capabilities

Beyond vision measurement machines and CMMs, our production line includes core optical metrology components: VMM controllers, lens systems, cameras, linear scales, and specialized fixtures.

Customer Support

Our specialist team provides flexible measuring solutions with minimal after-sales service requirements, thanks to our stable, modular designs that reduce partner training and maintenance costs.
