    Detail produk:

    Place of Origin: China
    Nama merek: Bomatec
    Model Number: UMLRB

    Syarat-syarat pembayaran & pengiriman:

    Minimum Order Quantity: 1
    Packaging Details: Paper box
    Delivery Time: 5 work days
    Payment Terms: T/T
    Supply Ability: 100 per month
    Hubungi sekarang
    Detil Deskripsi produk
    Connection voltage: 10-30 VDC / 5VDC Current: 10-30 VDC: max. 150mA, 5 VDC: 200mA
    Signal level: 10-30VHTL/5V TTL Resolution: 0.001mm/0.005mm/0.01mm
    Max. running speed: 2m/s Output signal: A, A’, B, B’, Z, Z’



    Magnetic Grating Non Contact Optical Linear Scale 32 M High Speed Measuring



    Introduction



    The UMLRB series is a magnetic grating length measuring system, the sensor and the value reading electronics are embedded in one shell, the magnetic scale is stick on a flat plane, when install the scale, the sensor reader head should be kept the position of 0.1-2.0mm to the magnetic scale.



    Magnetic Grating Non Contact Optical Linear Scale 32 M High Speed Measuring



    Features



    Non-contact measuring.

    Large gap range between the signal reader head and the magnetic scale, 0.1-2.0mm.

    Measuring length up to 32m.

    Resolution up to 0.001mm.

    Repeatability up to +/-0.001mm.

    High stain resistance capability.



    Offering A, A’, B, B’, Z, Z’ signal.



    Magnetic Grating Non Contact Optical Linear Scale 32 M High Speed Measuring



    Parameters



    Connection voltage 10-30 VDC / 5VDC
    Current 10-30 VDC: max. 150mA, 5 VDC: 200mA
    Signal level 10-30VHTL/5V TTL
    Resolution 0.001mm/0.005mm/0.01mm
    Repeatability +/-0.001mm
    Max. running speed 2m/s
    Output signal A, A’, B, B’, Z, Z’
    Measuring length 32m(Need larger size please consult to our service dept. )
    Sensor / scale distance Max.2.0mm
    Accuracy in 20°C(um) ±(20+20xL), L=measuring length, unit:m
    Running temperature -10 - 70°C
    Storage temperature range -25 - 85°C
    Humidity Without condensation, max. 80%
    Protection level IP67

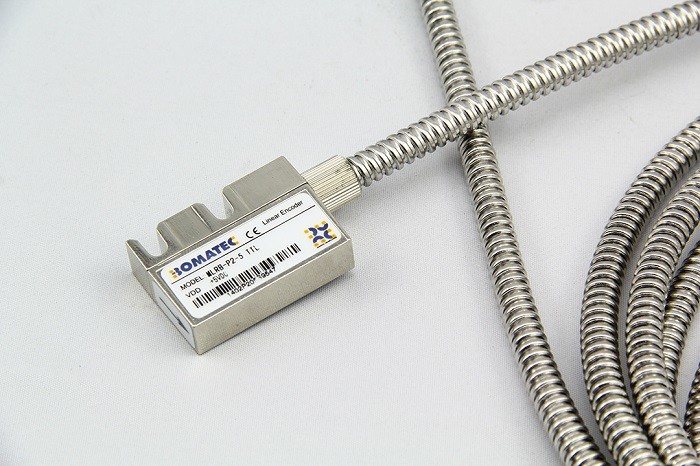

    Sensor mechanical data UMLRB shell 41 x 11 x 29 mm
    Max length 30.0m
    Weight 58g
    Signal cable 2 x 0.75mm², und 6 x 0.14mm²

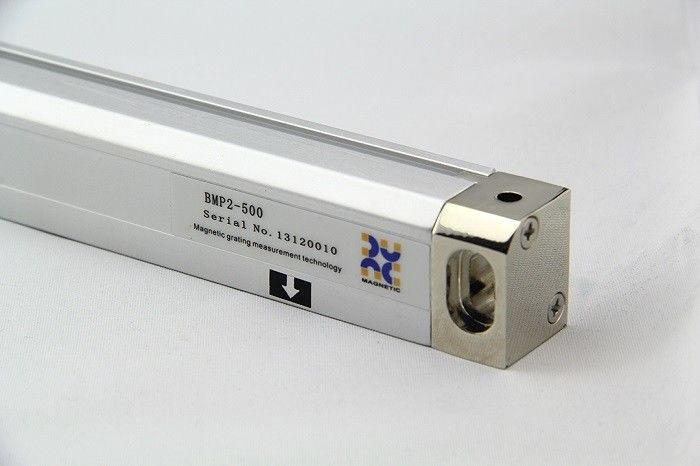

    Magnetic scale, MP2-xxx-xx banding redius: min. 60mm
    Expanding index a=16x10-6K-1
    Length expending: ΔL=LxaxΔa
    Dimension 10mm x 1.8mm
    Min. curvity radius 150mm
